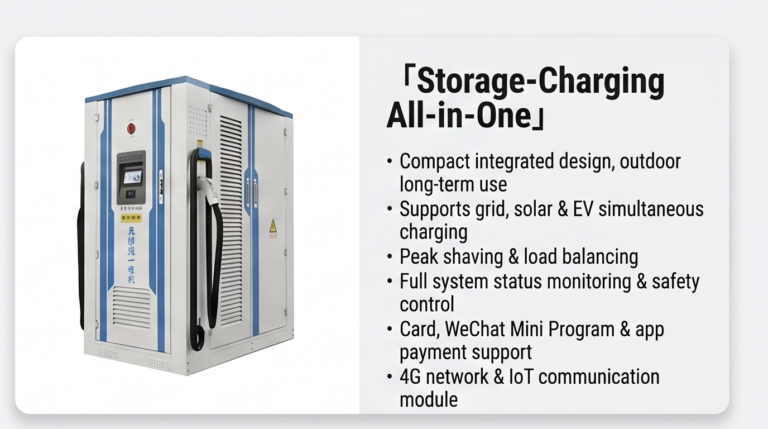

PV/ESS/Charger All-in-One
Solar + Storage + EV Charging · 100kWh Battery · 120kW DC Fast Charging · Grid-connected & Off-grid Operation
Thank you for reading this post, don't forget to subscribe!Key Highlights
- PV + ESS + Charger Integrated — Combines photovoltaic power generation, energy storage, and EV fast charging in a single compact unit
- Suitable for Limited Transformer Capacity — Ideal for commercial buildings, schools, factories, hospitals, and charging stations with transformer constraints, high electricity prices, or unstable power supply
- On/Off-grid Operation — Seamless switching between grid-connected and off-grid modes, ensuring continuous power supply even during outages
- Peak Shaving & Valley Filling — Dynamic capacity increasing and PV access support, optimizing energy costs and maximizing renewable energy utilization
Technical Parameters
| PV/ESS/Charger All-in-One | |
|---|---|
| AC Data | |
| Grid Voltage Range | 400V ±15% |
| Grid Frequency Range | 50Hz ±2.5Hz |
| Grid Power Range | 50–100kW |
| Charging/Discharging Power of Battery | 45kW |
| Number of PV Access Routes | 1 |
| PV Power | 60kW |
| Output Constant Power Range | 330V–1000V |
| Electric Vehicle Charging Power | 120kW |
| Battery Data | |
| Battery Type | LFP |
| Battery Cell | 280Ah |
| Rated Energy | 100kWh |
| Rated Voltage | 358.4V |
| Operating Voltage Range | 313.6V–408.8V |
| Combination | 1P112S |
| C-Rate/D-Rate | 0.5C |
| Charging Piles Data | |
| Number of Chargers | 2 |
| Output Current | MAX: 250A per charger |
| Auxiliary Power Supply | 12V |
| General Data | |
| Ingress Protection | IP54 |
| Fire Fighting | Perfluorohexanone |
| Operating Temperature | -20℃ ~ +50℃ |
| Cooling | Forced Air Cooling |
| Altitude | ≤ 2000m |
| Dimension (L×W×H) | 1650mm × 1100mm × 2100mm |
| Weight | ≤ 1.8t |
Core Advantages
PV + ESS + Charger Integration
- Combines solar generation, storage & EV charging
- Eliminates separate equipment procurement
- Compact footprint for space-constrained sites
- Single-point control and monitoring
100kWh LFP Battery
- Safe lithium iron phosphate chemistry
- 280Ah high-capacity cells
- 358.4V nominal voltage
- 0.5C charge/discharge rate
120kW DC Fast Charging
- Dual charging guns (250A max each)
- Wide output voltage range (330V-1000V)
- Compatible with all EV models
- Rapid charging for commercial fleets
Limited Capacity Solution
- Ideal for transformer-constrained sites
- Reduces grid upgrade requirements
- Lowers electricity costs via peak shaving
- Stabilizes power supply for critical loads
On/Off-grid Operation
- Seamless grid-connected operation
- Off-grid backup during outages
- Dynamic capacity increasing
- PV self-consumption optimization
Smart Energy Management
- Peak shaving & valley filling
- Time-of-use tariff optimization
- Real-time monitoring and control
- Remote diagnostics and support
