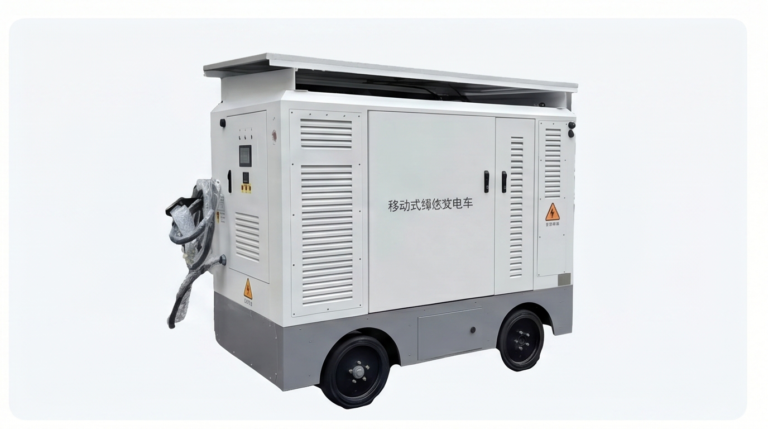

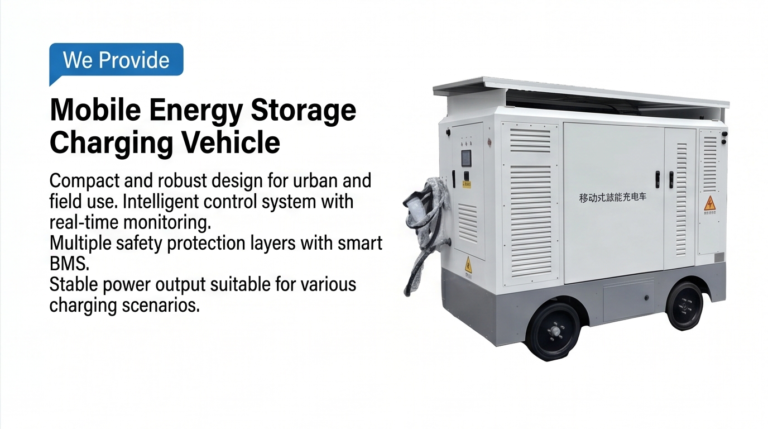

Mobile Energy Storage System (MESS)
The MESS mobile energy storage system integrates high-performance LFP battery modules, a smart BMS, and a pure sine wave inverter into a rugged, towable enclosure.
Designed for rapid deployment — no fuel, no noise, no emissions. A clean alternative to diesel generators for temporary power, emergency backup, and remote sites.
- All-in-OneMulti-function,integratedpowermanagementµgridsolutions.
- Ultra-highMobility,all-in-onefour-wheeldesign,fullytowable.
- Smart BMS with remote monitoring
- FasterDeployment,construction-free,plug-and-playforinstantuse.
Key Highlights
- Remote-controlled, ultra-mobile & easy to operate — Wireless remote control for effortless maneuvering in any terrain or confined space
- No infrastructure/hoisting required, self-powered auto-positioning — Built-in autonomous drive system eliminates need for external lifting equipment
- Large capacity, multi-mode operation — Grid-connected, off-grid, and hybrid modes for diverse application scenarios
- Emergency DC fast charging, grid-free, ready-to-charge — Deploy instantly even without grid access; rapid DC charging capability built-in
Technical Parameters of Energy Storage System
| 100kW/208kWh | |
|---|---|
| DC Side Parameters | |
| Battery Type | LFP/3.2V/314Ah |
| Rated Energy | 208kWh |
| Nominal Voltage | 665.6V |
| Operating Voltage Range | 624V ~ 759.2V |
| Connection Mode | 1P208S |
| Charge/Discharge Rate | ≤0.5C |
| Grid-connected AC Parameters | |
| Connection Mode | 3W+N+PE |
| Rated Power | 100kW |
| Rated Current | 145A |
| Grid Voltage Range | 380VAC, -20%~+15% |
| Grid Frequency Range | 50Hz, ±2.5Hz |
| Power Factor | -0.99~0.99 |
| THDI | ≤3% |
| Off-grid AC Parameters | |
| Rated Output Voltage | AC 400V |
| Rated Output Power | 100kW |
| Rated Output Frequency | 50Hz |
| THDU | ≤3% (Linear Load) |
| Unbalanced Load Capacity | 100% |
| General Data | |
| Fire Protection System | Perfluorohexanone + Aerosol |
| Battery Cooling Method | Liquid Cooling |
| Operating Temperature | -20℃ ~ +50℃ |
| Ingress Protection | IP54 |
| Dimension (L*W*H) | 1950mm × 1250mm × 1750mm |
| Weight | ≤2.5t |
Core Advantages
Autonomous Mobility
- Remote-controlled autonomous drive system
- No hoisting or external power needed for positioning
- All-terrain mobility with compact footprint
- Forklift and trailer compatible
Rapid Deployment
- Grid-free, self-powered operation
- Emergency DC fast charging ready
- Plug-and-play setup, minimal installation
- Deploy within minutes of arrival
Large Capacity & Multi-mode
- 208kWh high-capacity LFP battery pack
- Grid-connected mode up to 100kW output
- Off-grid mode with 100% unbalanced load support
- Hybrid mode seamless switching
Liquid Cooling System
- Advanced liquid cooling technology
- -20℃ to +50°C wide temp range
- Consistent thermal performance
- Prolonged battery cycle life
Safety & Protection
- Perfluorohexanone + Aerosol fire suppression
- IP54 ingress protection rating
- Multi-level BMS protection system
- Temperature monitoring and control
Wide Application Scenarios
- Construction sites & emergency backup power
- Event venues and temporary installations
- EV mobile charging station
- Microgrid and off-grid communities
Ready to Power Your Project?
Our engineering team is ready to provide custom solutions, technical specifications, and competitive pricing for your power infrastructure needs.
