PV + Storage Integrated

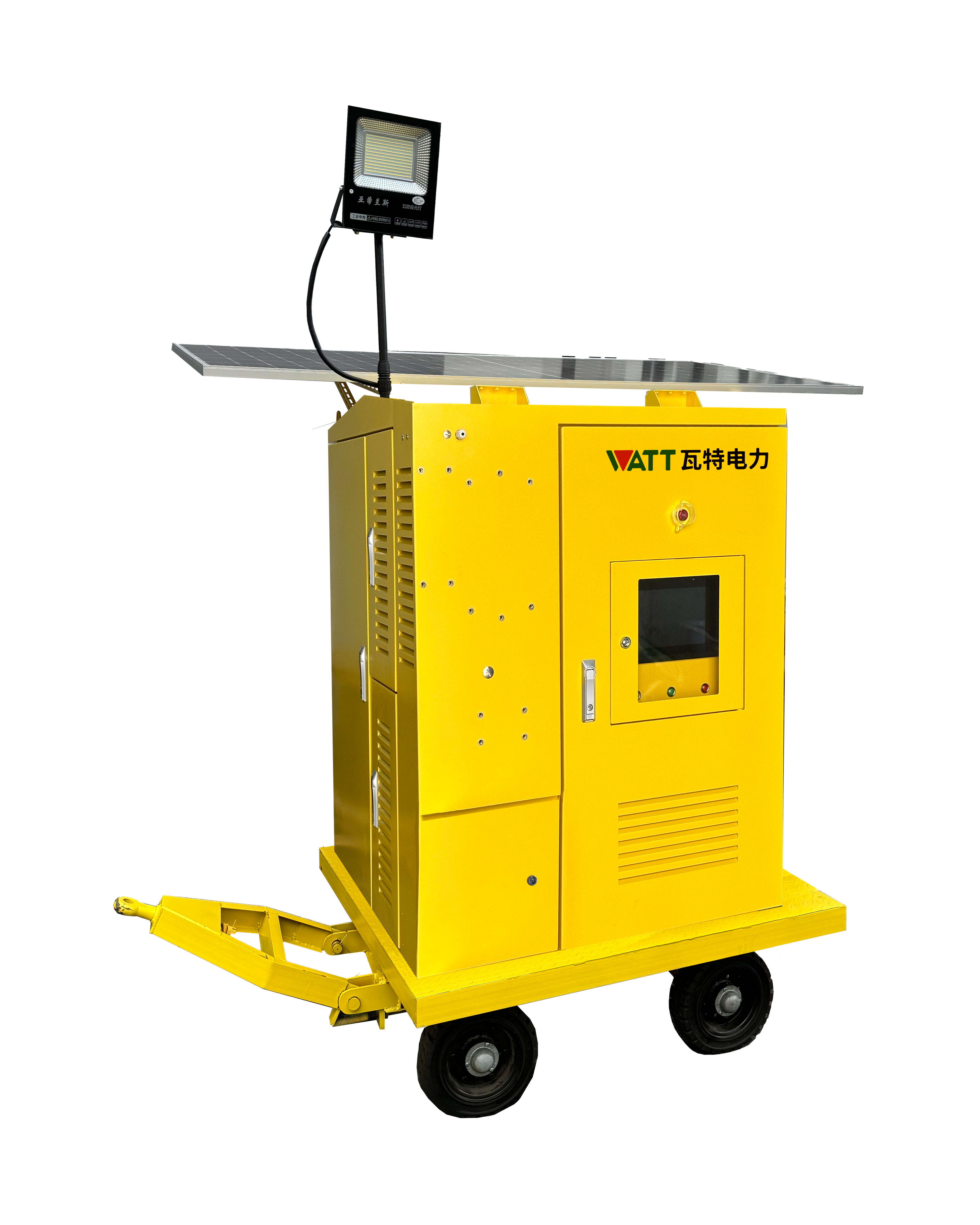

Mobile Solar Energy Storage System

A trailer-mounted, portable energy storage solution with integrated solar PV input. Designed for emergency power supply, construction sites, outdoor events, and off-grid applications. Features 30kW power output with 50kWh battery capacity and optional solar charging.

30kW Rated Power

50kWh Capacity

PV Input Optional

Trailer-Mounted

Request Quote WhatsApp Spec Sheet

Technical Data

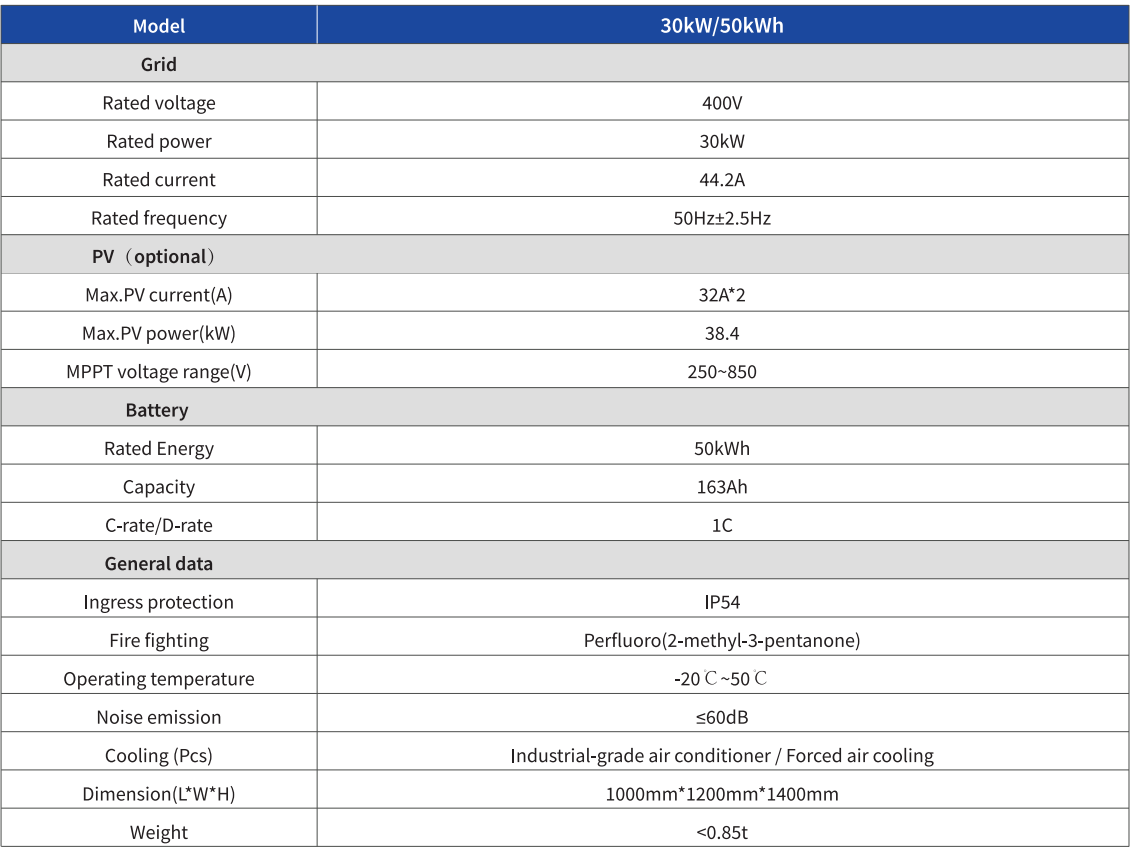

Product Specifications

Grid Parameters

Rated Voltage	400V
Rated Power	30kW
Rated Current	44.2A
Rated Frequency	50Hz±2.5Hz

PV Input (Optional)

Max PV Current	32A×2
Max PV Power	38.4kW
MPPT Voltage Range	250~850V

Battery

Rated Energy	50kWh
Capacity	163Ah
C-rate/D-rate	1C
Battery Type	LiFePO₄

General Data

Ingress Protection	IP54
Fire Fighting	Perfluoro(2-methyl-3-pentanone)
Operating Temperature	-20°C~50°C
Noise Emission	≤60dB
Cooling	Industrial-grade air conditioner / Forced air cooling
Dimension (L×W×H)	1000mm×1200mm×1400mm
Weight	<0.85t
