Remote-controlled Mobile Energy Storage Vehicle
Main View Side View
EV Charging Ready

Remote-controlled Mobile Energy Storage Vehicle

An ultra-mobile, self-powered energy storage vehicle with remote control capability. Features large-capacity battery, multi-mode operation, and emergency DC fast charging for grid-free, ready-to-charge applications. Ideal for EV charging stations, emergency rescue, and temporary power supply.

100kW Rated Power
208kWh Capacity
Remote Controlled
DC Fast Charging
Request Quote WhatsApp

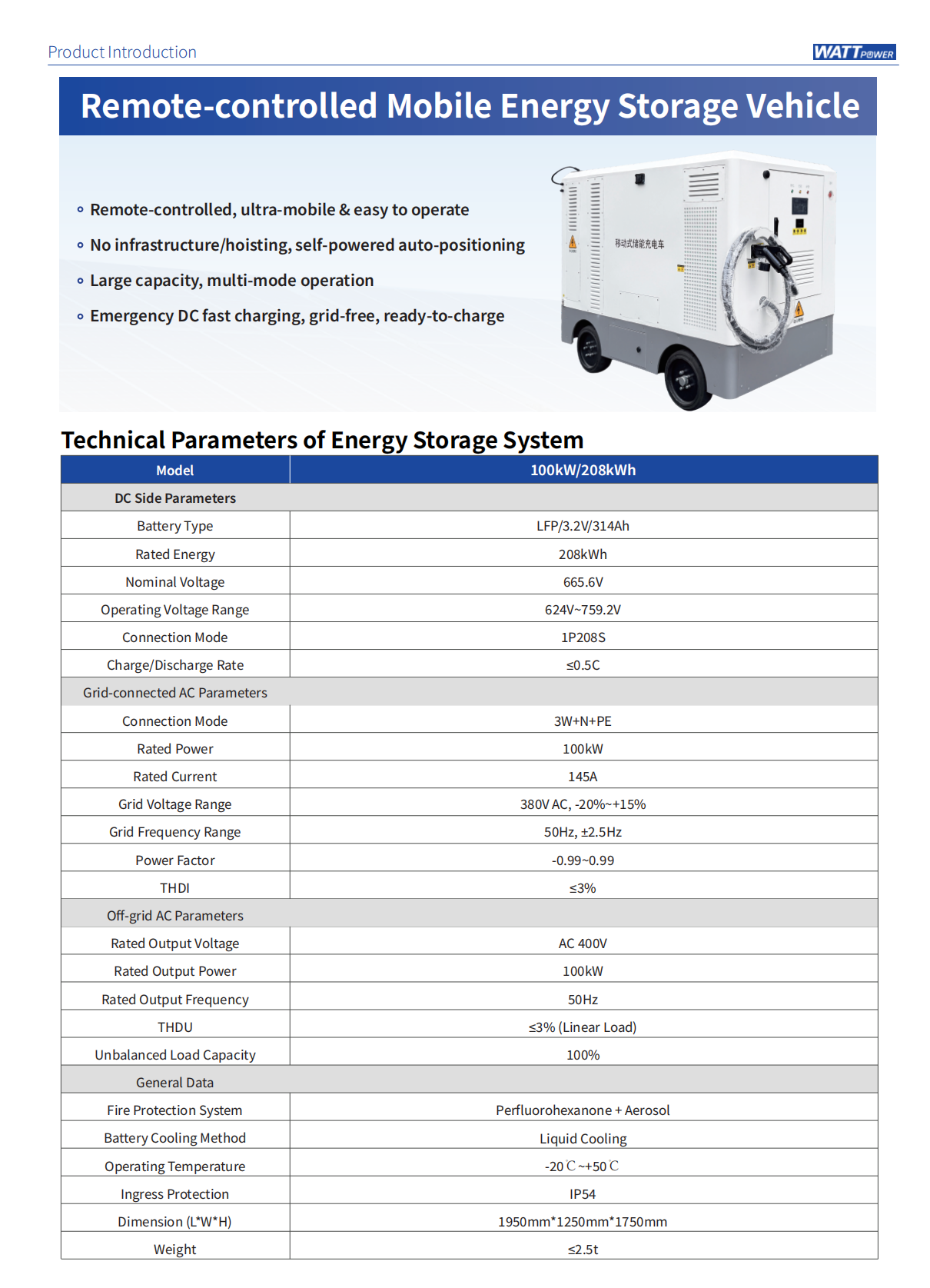

Technical Data

Product Specifications

DC Side Parameters

Battery TypeLFP/3.2V/314Ah
Rated Energy208kWh
Nominal Voltage665.6V
Operating Voltage Range624V-759.2V
Connection Mode1P208S
Charge/Discharge Rate≤0.5C

Grid-connected AC Parameters

Connection Mode3W+N+PE
Rated Power100kW
Rated Current145A
Grid Voltage Range380V AC, -20%~+15%
Grid Frequency Range50Hz, ±2.5Hz
Power Factor-0.99~0.99
THDI≤3%

Off-grid AC Parameters

Rated Output VoltageAC 400V
Rated Output Power100kW
Rated Output Frequency50Hz
THDU≤3% (Linear Load)
Unbalanced Load Capacity100%

General Data

Fire Protection SystemPerfluorohexanone + Aerosol
Battery Cooling MethodLiquid Cooling
Operating Temperature-20°C~+50°C
Ingress ProtectionIP54
Dimension (L×W×H)1950mm×1250mm×1750mm
Weight≤2.5t
